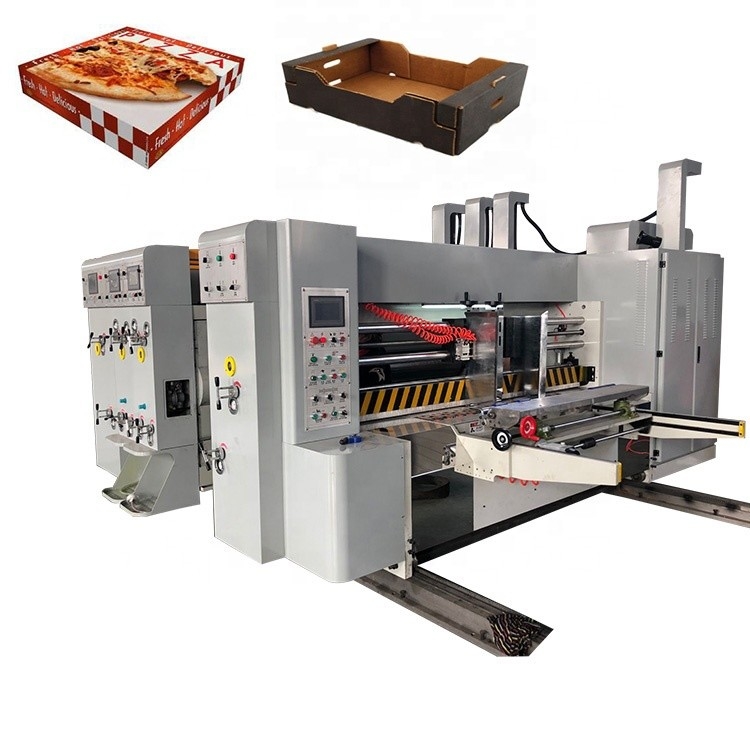

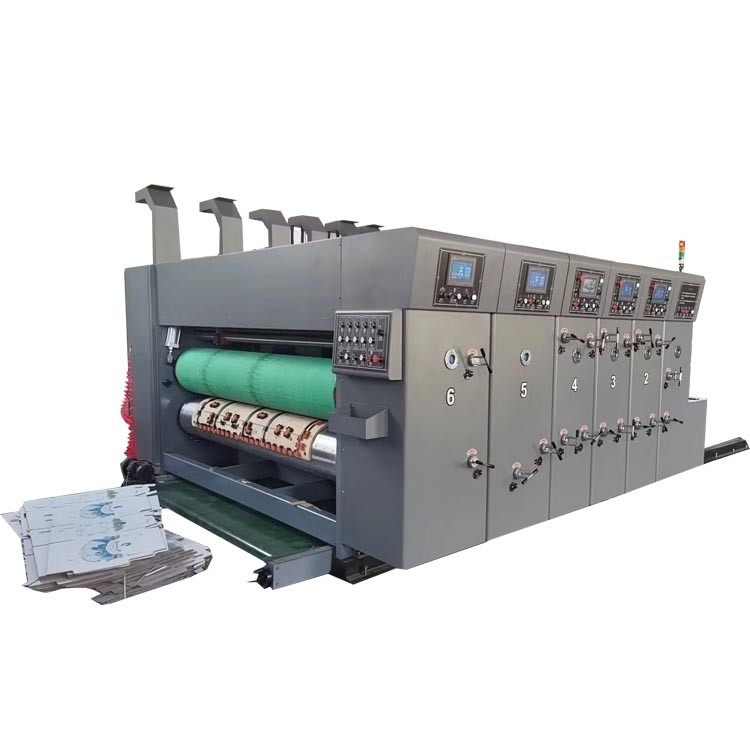

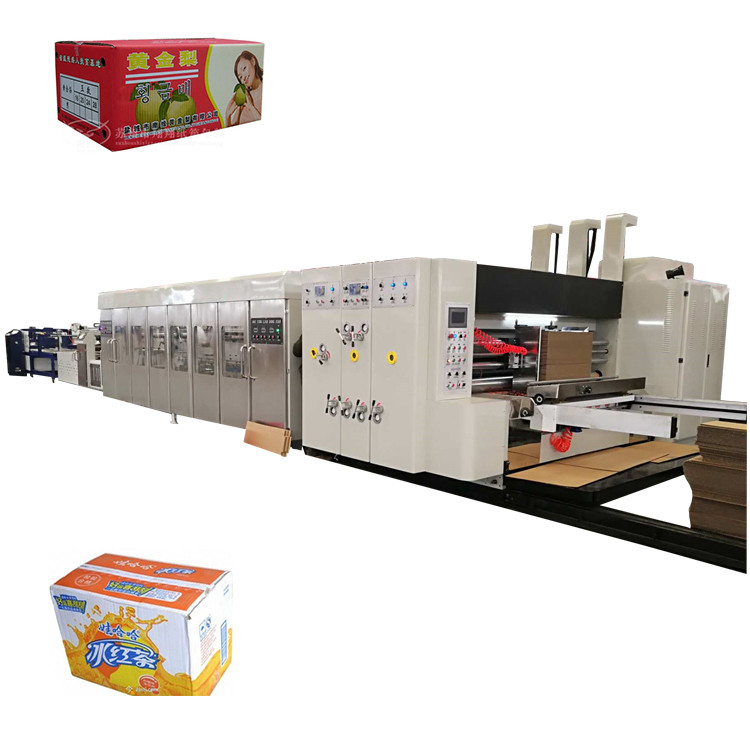

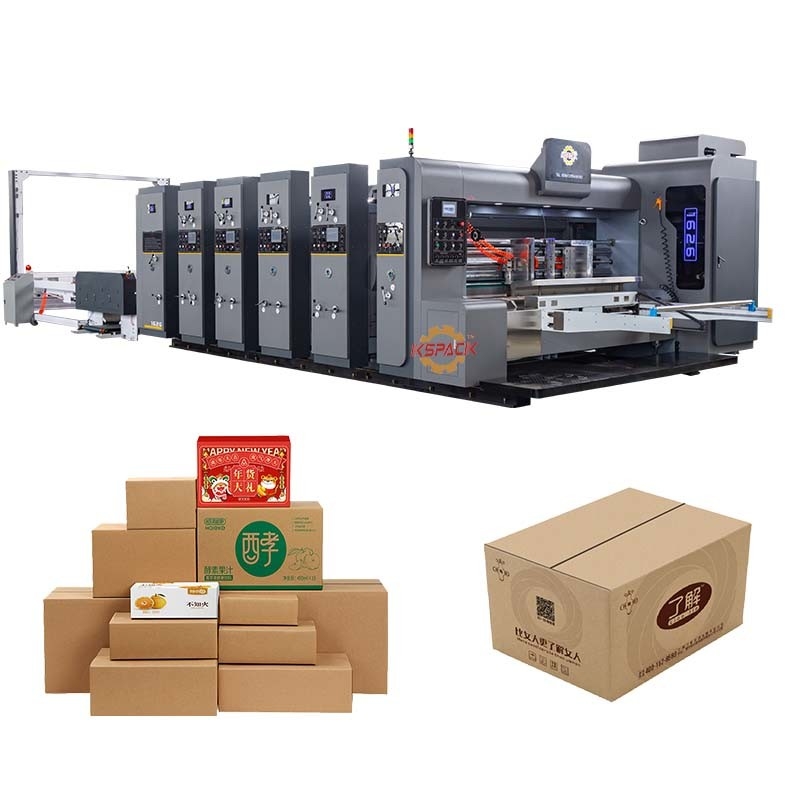

Machine main feature: |
【1】 electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers. 【2】 drive shaft with friction clutch, to avoid misuse and damage to the machine. 【3】 pneumatic interlock device. 【4】 The host motor starts the protection device. (The machine is not locked, the host can not start running) |
|
leading edge roller type feeding system |
【1】 suction auxiliary feeding paper fan 7.5KW, according to the different bending conditions of cardboard, air volume adjustment,To ensure smooth paper supply. Use the brush to remove the cardboard surface Dust, scraps of paper and other debris, improve the printing quality. [2] slotted with a chain control switch, control emergency stop paper. 【3】The paper lift and down adopt the air cylinder ,the action quickly, effort.the use of Shandong "Komori" front edge roller feed system, simple [3] operation, high precision. The amount of extension can be adjusted, raw Strong adaptability. Speed transmission more stable, suitable for warping, thin cardboard transmission, the effect is obvious. 【 5 】 side baffle, rear box position by the screw electric adjustment; front baffle upper and lower gap position manually synchronized adjustment. 【6】skip feeding device (according to the need to choose continued or sheet feeding). 【7】PLC control, man-machine interface, menu storage, printing plate correction, printing speed, quantity, time and the Department operation |
|
Feed roller |
【1】up roller use the soft rubber shaft ,so when feed the board ensure the not broken the board Diameter 132mm, wearing rubber shaft ,make the balance correct ,keep the paper feed steay and accurate. 【2】The lower feed roller with embossing roller diameter ¢ 155 mm, seamless steel pipe, embossed hard chrome plating. 【3】feeding roller cross slider-type dial dial manually adjust the |
|
adjustment range of 0 ~ 12 mm. Adjustment does not affect the gear gap, to ensure transmission accuracy. 【4】hand-type quick clearance fine-tuning self-locking device. |
|
| Automatic zero device |
【1】The paper feed section, the printing section, and the slotted part are automatically reset to zero. [2] General carton use automatic zero device, try to print two be adjusted to the correct position to reduce cardboard waste. |
|
printing roll (plate roll) |
Ø 【1】diameter of ¢ 408 mm (with diameter of ¢ 408mm) Ø high-quality steel surface grinding, axial reference Ø scale, hard chrome plating. Ø to do the balance correction, smooth operation, to Ø adapt to high-speed operation. Ø 【4】ratchet fixed scroll plate, with hanging plate ditch, to Ø adapt to the rapid version of the installation convenient and Ø quick. Ø 【5】full version of hanging slot, for 10 mm hanging version Ø of the article. Ø 【6】loading and unloading printing plate, foot switch Ø electric control is reversing. Ø 【7】printing roller axial manual traverse, the maximum Ø movement of 10mm. |
| Printing press roll |
Ø 【3】printing pressure roller cross slider-type dial to Ø manually adjust the adjustment range of 0 to 12 mm. Ø Adjustment does not affect Gear clearance to ensure Ø transmission accuracy. |
|
Feed the upper and lower rollers |
Ø 【1】on the roll: diameter ¢ 86 mm seamless steel pipe, Ø with three paper feed ring. Ø 【2】 the next roll: diameter ¢ 155 mm seamless steel pipe, Ø surface grinding, hard chrome plated Ø 【3】feeding roller cross slider-type dial dial manually adjust Ø the adjustment range of 0 ~ 12 mm. Adjustment does not Ø affect teeth Wheel clearance, to ensure transmission accuracy. |
|
steel anilox roller rubber roller set ink system |
Ø 【1】diameter of ¢ 213.7 mm. Ø 【2】steel surface grinding, repression reticulate, hard chrome Ø plating. Ø 【3】 balance correction, smooth operation. Ø 【4】mesh number is 180,200,220,250 lines / inch selection. Ø Option ceramic roller 300-500line/inch Ø 【5】with the feed system pneumatic automatic lifting device. Ø (When feed paper the anilox roller is lowered and touched with Ø print plate ,stop feed paper anilox roll is up and the plate is Ø separated) Ø 【6】Anilox roller with wedge-type clutch, even ink, easy to Ø clean ink. Ø 【7】rubber roller diameter ¢ 186 mm.option the doctor blade Ø system Ø 【8】steel pipe surface wrapped with wear-resistant rubber, and Ø do the balance correction. Ø 【9】rubber in the special high grinding, ink transfer effect is Ø good. Quick clearance fine-tuning self-locking device to ensure Ø uniform ink. The amount of uniform ink system, the conversion Ø effect is good, to extend the life of rubber roller. |
|
phase adjustment mechanism |
Ø 【1】planetary gear structure. Ø printing phase using computered plc control impurt the digital .(Run, stop can be adjusted), manually adjust the horizontal position, adjust the distance of 10 mm. Ø 【2】in the printing process after the printing plate automatic Ø reset the system. |
|
ink circulation |
Ø 【1】Pneumatic diaphragm pump, ink stability, easy operation Ø and maintenance. Ø 【2】ink filter, filter impurities. |
|
Printing phase fixing device |
Ø 【1】 cylinder brake mechanism. Ø 【2】 When the machine to separate or adjust the phase, the Ø brake mechanism To limit the machine rotation, to maintain the Ø original gear position fixed point. |
Ø 1. The roller is plated with hard chrome on the surface of high-quality steel and balanced for balance to improve its running stability and reliability.
Ø 2. The die roll and the soft roll adopt the international standard size. The die roll diameter is 360mm, and the die diameter is 410mm. The soft roll diameter is 389mm (the excellent outer diameter of the rubber sleeve is 405mm), which can be purchased anywhere. Template and
Ø rubber pad.
Ø 3. The gap between the die roll and the pad roller is manually adjusted.
Ø 4. The phase of the die-cutting roller adopts three-planetary structure with high precision and large bearing capacity. It can be electrically and digitally 360° adjusted for stop and operation.
Ø 5. When the paper feed is stopped, the soft roller is automatically raised to reduce the wear of the soft roller.
Ø 6. The rubber pad adopts the production of polyurethane felt cover (created top brand) in Shanghai, which can achieve 100% cutting rate, and the incision is smooth. The order of replacement of the rubber pad should be based on the loading and unloading operation manual of the rubber pad.
Ø 7. The rubber pad roller adopts mechanical cam type left and right movement (30mm) device, each knife is in different positions, effectively extending the felt
Ø The life of the set.
Ø 8. The upper and lower rolls of the die cut are different in diameter, but the line speeds of the two rolls are equal. Can control the die cutter to infinitely circulate in the circumferential direction
Ø The work makes the rubber sleeve wear more even.
Ø 9. Linear speed compensation device, when the diameter of the soft roller changes, the linear speed automatic compensation device automatically performs tracking compensation, without manual adjustment of the speed, ensuring that the die-cutting dimensions of each batch of carton are exactly the same, and the felt sleeve and the die are greatly extended. The service life.
Ø 10, the soft roller automatic repair device can repair the felt after the wear many times, the repaired felt cover is smooth and smooth, maintaining the same performance as the new felt cover. Greatly improve the reuse rate of the felt pad.
