Automatic High Speed Sheet To Sheet Flute Laminating Machine For Corrugated Cardboard

Automatic High Speed Sheet To Sheet Flute Laminating Machine For Corrugated Cardboard

1.suitable for lamination of corrugated paperboard to cardboard ,and cardboard to cardboard.automatic feeding bottom sheet paperboard and face paperbaord

2.Features for Automatic High Speed Sheet To Sheet Flute Laminating Machine For Corrugated Cardboard

(1)Adopt the page control system to automatically recycle the glue, which greatly reduces the labor intensity.

(2)The machine adopts all ISO9001 standard inspection of materials, with high quality and solid durability. Key parts such as bearings are imported.

(3)Independently develop a powerful FEIDA paper with precoded paper device to reduce downtime and improve work efficiency.

(4)The machine is suitable for 150-450gsm paper, A B C D E F wave and three and five layers cardboard (the maximum thickness is less than 10mm).

(5)The machine adopts unique pressure spring front gauge design, which effectively reduces mechanical failure rate and ensures accurate positioning with intelligent control.

(6)The machine adopts frequency conversion to regulate speed. PLC centralized control, module conversion, operation control standard.

(7)Double servo control is adopted to realize the timeliness and accuracy of the base paper to the front gauge, so as to ensure the accuracy of the machine under the operating condition .

(8)After balancing treatment and testing, the steel roller, coupled with the tightening assembly process, effectively improves the mechanical stability. In addition, when the main transmission is driven by the timing belt, the bottom paper part directly absorbs the air and delivers the paper,effectively improving the operating accuracy and speed of the machine.

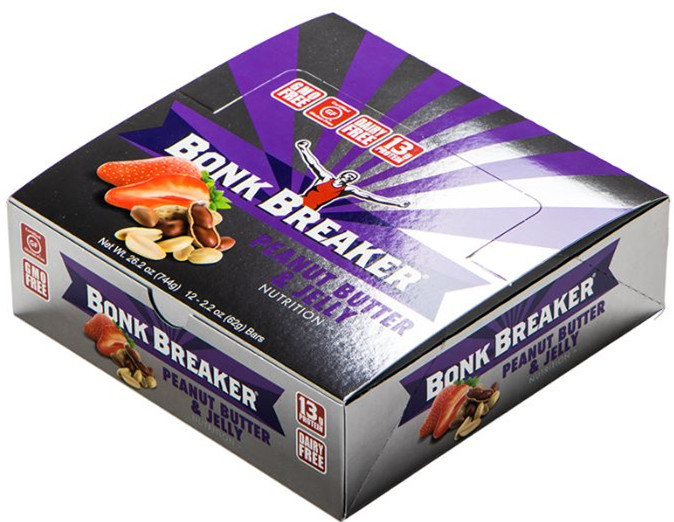

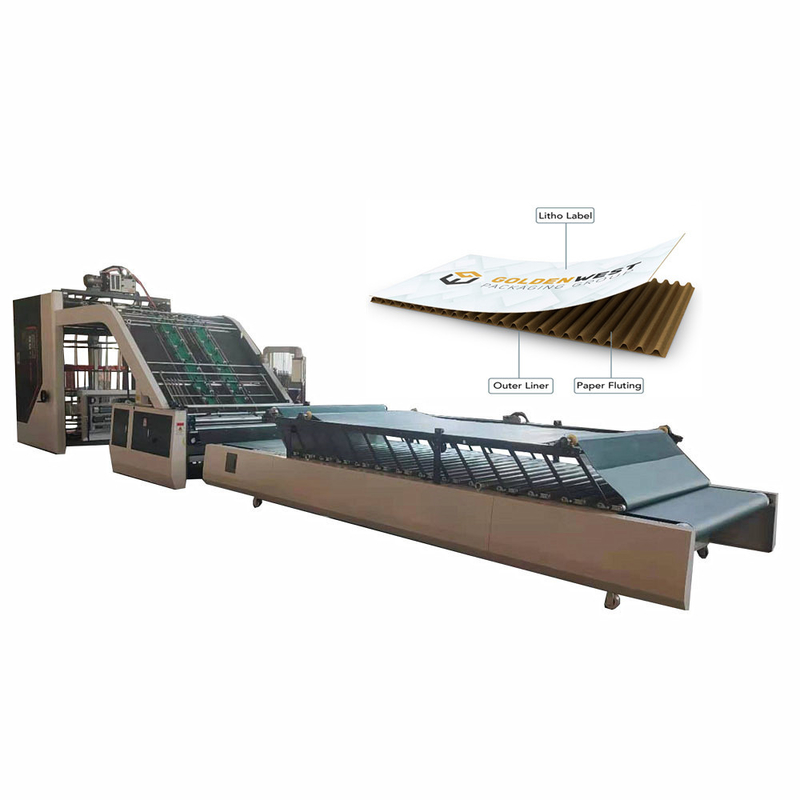

3. Automatic Corrugated Paperboard Flute Laminating Machine samples and machine picture
