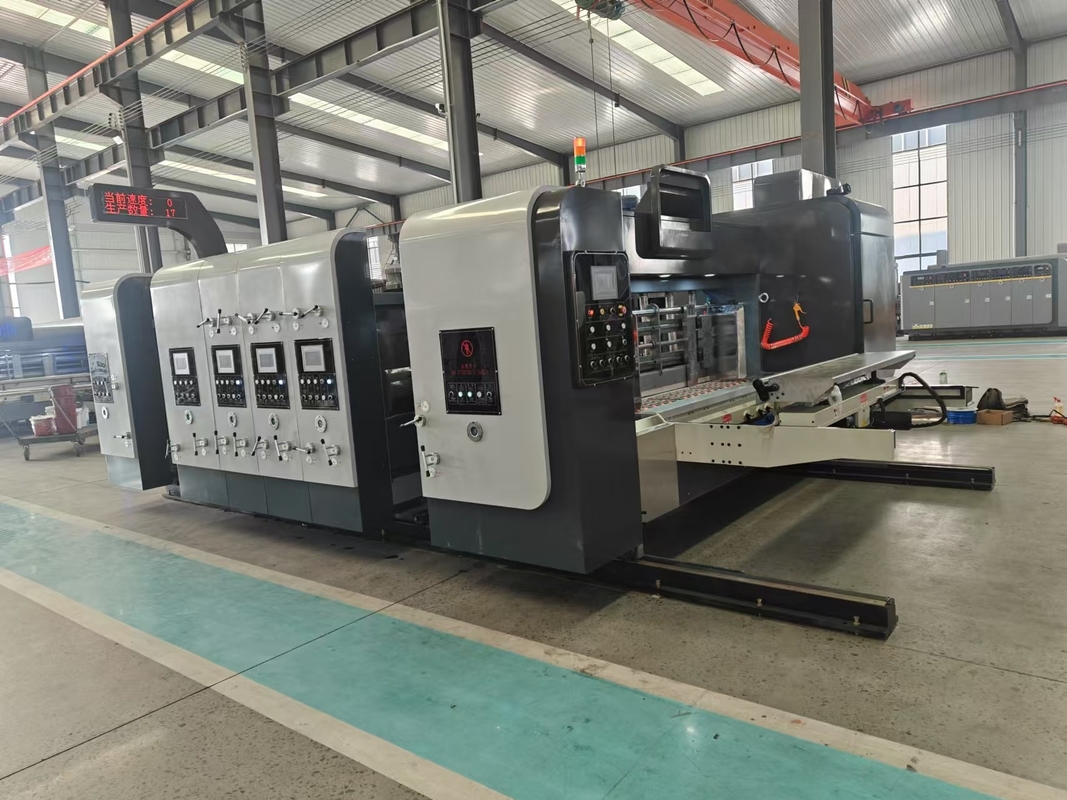

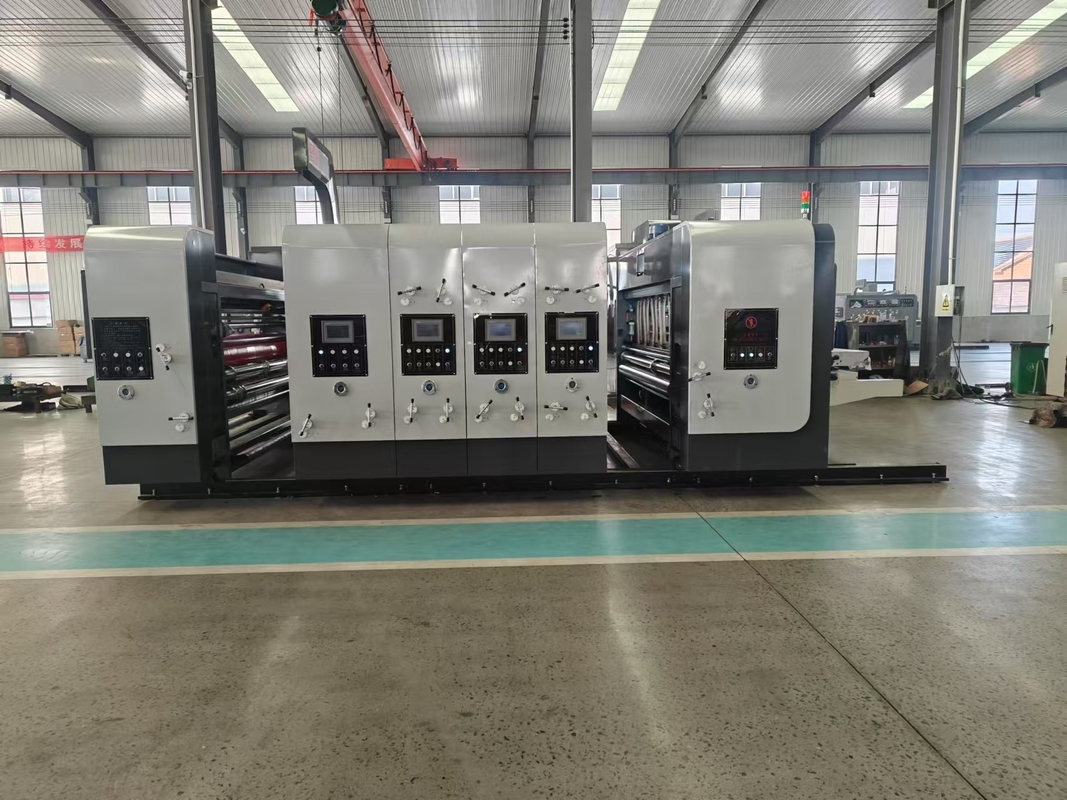

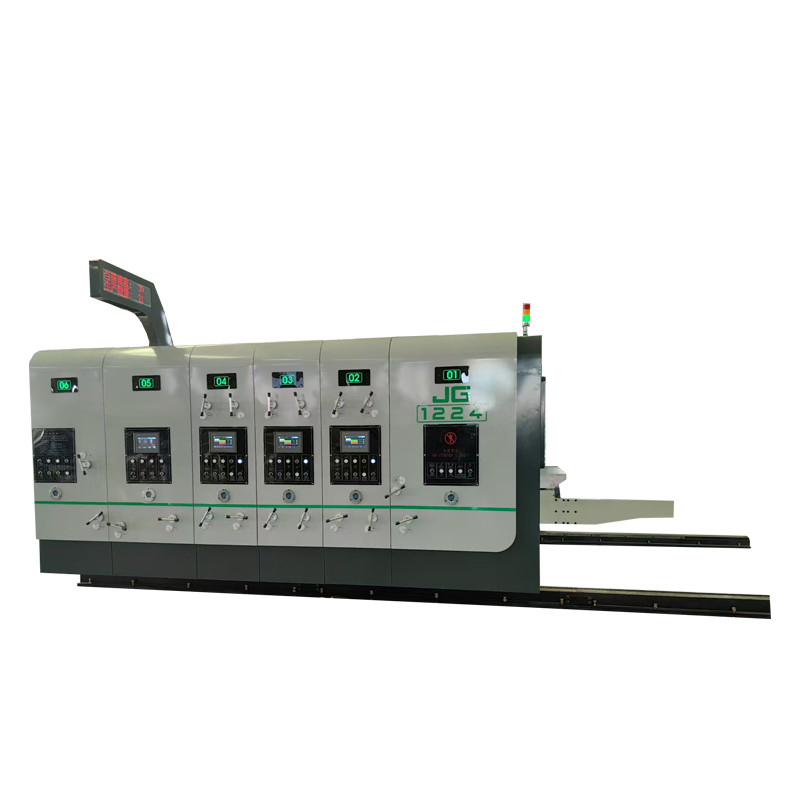

Corrugated Carton Box Making Machine 4 Color Slotter Die Cutter Machine

Corrugated Carton Box Making Machine 4 Color Slotter Die Cutter Machine

The machine clutch:

1) the machine clutch electric control with alarm, moving last warning bell ring, Ensure workers safety.

2) Pneumatic interlocking device

3) the main motor adopts frequency conversion motor, frequency conversion controller, energy saving, stable starting, attached to the motor start protection device.

2. Lead Feeder paper system

1) the suction assist feeder paper,draught fan 7.5 kw, at different levels can be bent according to the board, air volume adjustment, ensure feeding smoothly.

2) Carry paper,fall paper adopt cylinder push, move quick and powerful.

3)Side panel for manual adjustment, front and back panel are manual adjustment.(can options Electrical adjustment ).

4) Taiwan super resistance to lead feeding wheel, Perishable Wear Resistant.

5)skip feeding paper device,( can choose according to need continuous or skip feeder paper).

6)Feeding counter, set, display production quantity .

3.Dust removal device1) Paper brush dust removal device, can remove impurity on printing cardboard the surface , improve the quality of printing

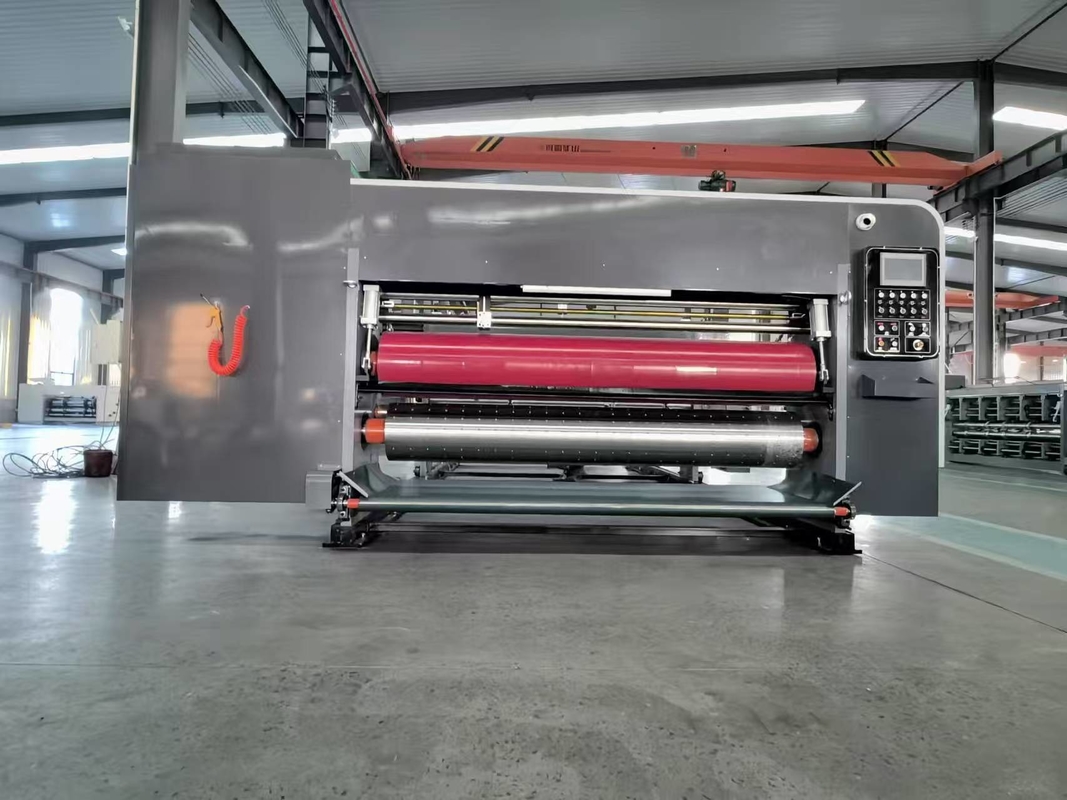

4. Feeder paper roller .

1) . Outer diameter: 140 mm, up roller .

2).45 # seamless steel tube, parcel wear-resisting rubber, and do dynamic balance correction.

3)down roller,external diameter 140 mm, embossing and hard chromium plating , and do dynamic balance

correction .

4)feeder Paper roller gap dial manual adjustment, adjustment range 0-12 mm .

5)The former feeder paper rubber roller (elastic rubber roller) for dynamic lift and fall , automatic voltage regulator, can reduce the strength fracture of the corrugated board

5. Computer device

1) The main motor adopts frequency conversion motor, frequency converter adopt Delta from Taiwan, energy saving and save electricity can reach 30%.

2) Fan adopts independent inverter control, wind pressure is Adjustable .

3)Home screen adopt PLC control, human-machine interface.

4) printing department, die cutting department is equipped with automatic zero device, (general carton using automatic zero device, testing-run two pieces cardboard can be adjusted to the correct position).

5)Automatic lift and down version of the device, printing anilox roller in order to lift and down (computer delay), avoid printing plate print ink for many times.

6) can join (memory Hang version, storage function of order). (optional)

Paramater:
