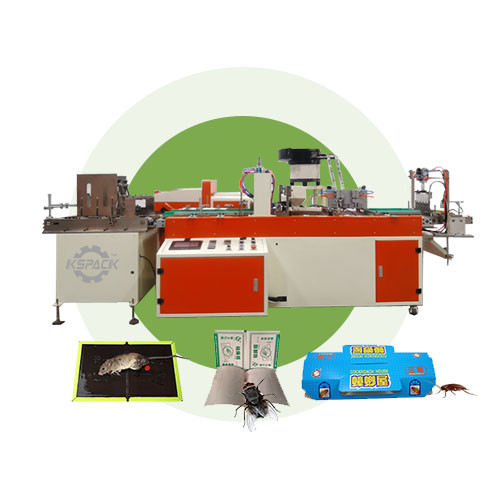

| HG-909 fully auto mouse glue trap machine | ||
|
A.Machine size and weight |
Floor Space | 7mx2m |
| Weight | 950kg | |
|
B.Factory Facility Supply Requirements |
Machine motor | 30kw |
| Working pressure | AC 380v ±10% 50 Hz | |
| pressure/pipe diameter | Min2-6Kg/㎡,pipe diameterφ8 | |
| Environmenta l requirements | Clean, separate material machines, equipped with fire extinguisher facilities | |
|
C.Device control method |
programmer | Plc controller and 7 inch touch screen |
| constant temperature | PID control | |
| heating | ||
|
D. mouse board size range |
Width | 170mm-300mm |
| Glue coating size | 130mm-260mm(根据版型定做刮刀嘴) | |
| tolerance range | ±0.5mm | |
|
E.configure |
Control system |
PLC:yonghong |
| Touch screen: Fanyi | ||
| Transmission ,f old | Servo control:Hui chuan | |
| Auto feeder | 400w horizontal motor + frequency control (Yatai) | |
|
F.Other |
Most machine parts use standard parts | |
|
Need to be equipped with a air compressor more than 1.5KW |
||
