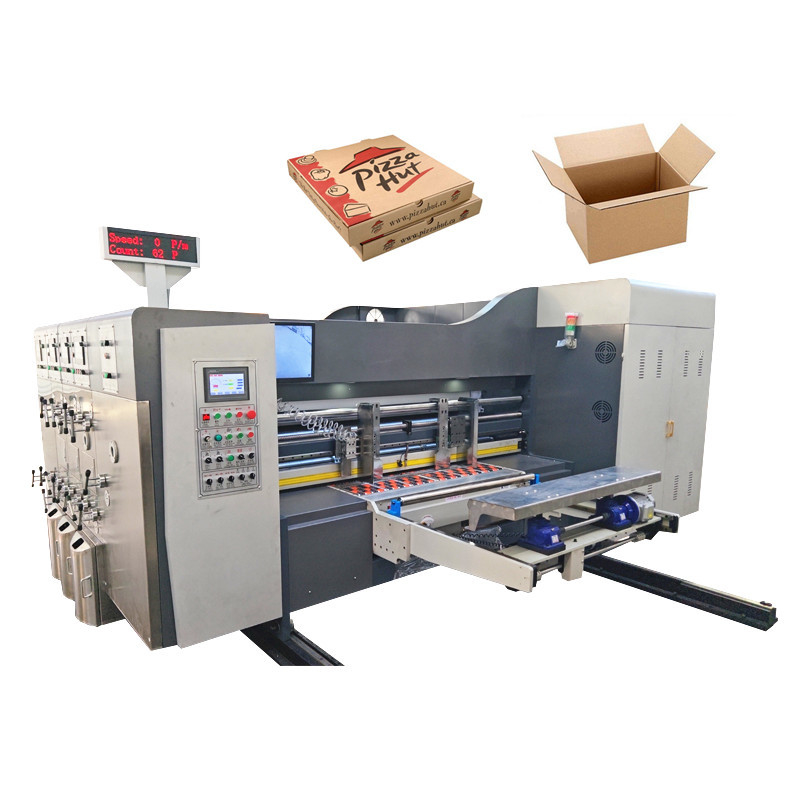

Carton Box Multi Color Printing Machinery Carton Print Slotting Flexo Printing Slotting Machine For Shipping Box
1. leading edge roller feeding system
(1), suction auxiliary paper feeding, - according to different bending conditions of the paperboard, the air volume can be adjusted to ensure smooth paper feeding.
(2), the paper is lifted and the paper is driven by the cylinder, which is quick and labor-saving.
(3)Adopt the leading edge roller feeding system.
(4), the side baffle and the rear baffle position are electrically adjusted; the front baffle gap is manually adjusted.
(5)Separate sheet feeding device (Continuous or sheet feeding can be selected as needed).
(6), paper feed counter, set and display the production quantity.
2.dust removal device (optional)
(1) The paper brush dust removal device can remove impurities from the printing surface of the paperboard in a large amount and improve the printing quality.
3. paper feed roller
(1) The outer diameter of the upper roller is φ100 mm.
(2) high quality seamless steel, wrapped with wear-resistant rubber, and balance correction.
(3) the lower roller φ124mm embossed hard chrome plated, and balance correction.
(4)the paper feed roller clearance dial is manually adjusted, the adjustment range is 0-12mm.
(5)automatic zero device (5)The paper feed unit, the printing unit, and the slotted unit are electrically reset to zero. (6)the general carton uses the automatic zeroing device, the test prints two can be adjusted to the correct position, reducing paperboard waste. Host control; the motor image represents the state of the main motor switch, the current speed is displayed above, The fixed speed is the set speed. When the host is stopped, fill in the number and open the host. The machine runs according to the set speed. There are two kinds of [feeding mode] [continuous], click to send Paper mode for conversion, count control; for production paper count, real count = setting Alarm after quantity Baffle control; left and right, up and down manual adjustment
4.Slotter unit - just input length width and height , then machine will be adjusted at the same time
1. Pressure line device •The shaft diameter is φ71 mm and the surface is ground. Hard chrome plated for smooth movement. •, do balance correction, and run smoothly. •Manual adjustment of the pressure wheel gap dial, the adjustment range is 0---12mm.
2, slotted tool holder traverse adjustment mechanism
(1), the shaft diameter is φ124mm, the surface is ground, hard chrome plated, and the movement is stable.
(2)The width of the slotting knife is 5-7mm.
(3), alloy steel material heat-treated grinding toothed slotting knife, hardness and toughness are good.
(4), the alloy steel material is heat-treated and polished, and the edge is sharp and the precision is high.
(5)Adjusting the traverse position of the pressure roller and the slotted cutter seat, and adopt manual mechanical joint adjustment.
(6)Two feeding paper shafts are added in the middle of the slotting and pressing line to ensure the smoothing accuracy of the slotting and the small cardboard, which greatly avoids the waste of paper.
3.Slotted phase adjustment machine
(1)Planetary gear construction.
(2), slotted phase electric digital 360 adjustment. (Operation and stop can be adjusted).
4, box height adjustment mechanism
(1)Planetary gear construction.
(2)Single-pole electric digital adjustment.
(3)carton slot size :The cutter head is opposite and two positive, 130mmx40mmx50mm Cutter head fit, 65mmx65mmx50mm
5.Box making procedure
| Step One | Make 3 ply 5ply corrugated paperboard from craft paper roll |
| Step Two | Print color , slot and die cut |
| Steo Three | use fold glue machine to glue box |

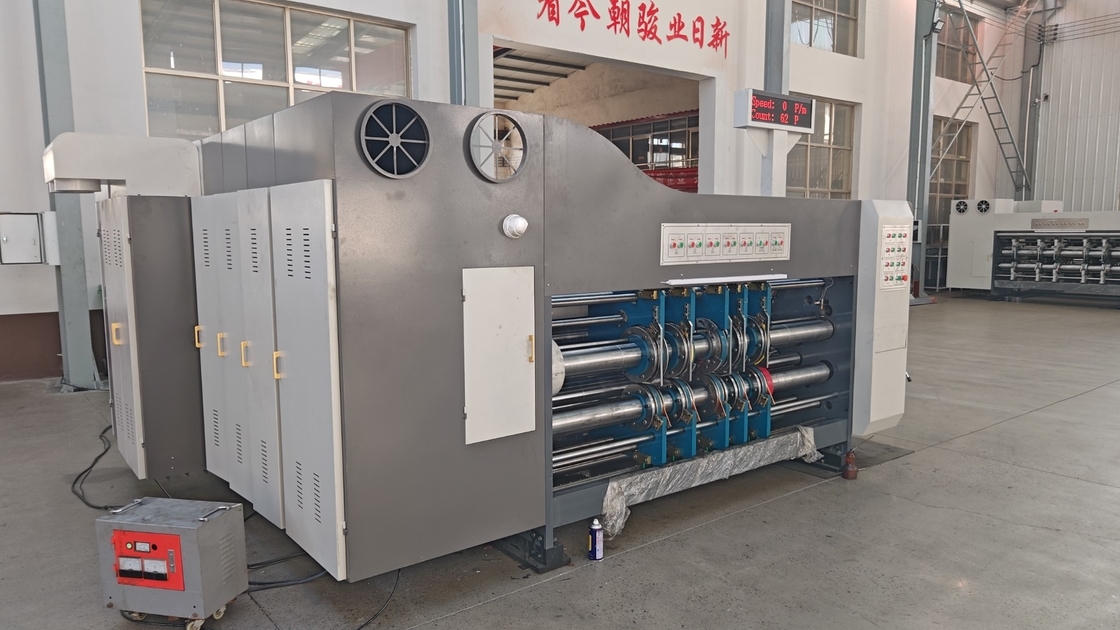

6.Slotter part picture
