80kg Hot Melt Rat Glue Trap Making Machine Automatic Control

80kg Hot Melt Rat Glue Trap Making Machine Automatic Control

Products - Rat Glue Trap Making Machine

Highlight

hot melt rat glue trap making machine
,
80kg rat glue trap making machine
,
Automatic mouse glue trap making machine
Machine Function

Rodent Mouse Rat Glue Trap Board Making Machine
Glue Type For This Machine

Hot Melt Glue
Glue Tank

80kg
Glue Trap Needed

15-25 Grams
Control System

Automatic Control
Machine Name

Rodent Mouse Rat Glue Trap Board Making Machine
Final Goods

Every Model Glue Trap Boards
Machine Type

Auto Feeder Auto Glue Auto Edge Fold
Machine Color

Customzied
Machine Speed

70 -100 Pcs Er Min
Place of Origin

cangzhou
Brand Name

KSPACK
Certification

ISO ,CE
Model Number

HG898+80kg
Minimum Order Quantity

1set
Price

Negotiable
Packaging Details

wooden case
Delivery Time

30-50days after getting deposit
Payment Terms

Western Union, L/C, T/T
Supply Ability

30sets per month

80kg Hot Melt Rat Glue Trap Making Machine Automatic Control

button button

Get Price Contact Now

Rat Pest Control Machine To Make Sticky Glue Board Hot Sale Rodent Mouse Rat Glue Trap Board Making Machine

1)Brief introduction for Rodent Mouse Rat Glue Trap Board Making Machine


full-automatic rat glue trap making folding and gluing machine is high efficient automatic production equipment for rat board glue traps .
Rat glue trap making machine includes : automatic paper feeding part , automatic folding edge part, automatic gluing part , automatic material spraying part, automatic spacer put part , automatic fold final products part .multi function finished one time .This model Rat glue trap making machine can move the folding machine section separately and connect the automatic paper feeder with the gluing section, can produce other products such as sticky board, magic blanket, mosquito killer lamp sticky board and fly glue catcher (semi-automatic operation, according to product requirements)

2)Structure for Rodent Mouse Rat Glue Trap Board Making Machine

whole machine composed of eight parts: a, automatic paper feeding; b. Automatic edge folding (4-way edge); c. Automatic gluing+automatic spraying bait; d. Automatic put seperate button (spacer); e. Automatic folder final products belt; f. 5KG capacity hot melt machine,(this for coat glue for fold edge) four hose pipes and three sets glue coat guns; g. 40kg hot melt machine, 1 hose pipe and 1 set of glue gun,for glue glue to board h. 1set 150kg glue melting pot (for heat the glue in advance and extend continuous production time ,it can direct connect with 40kg glue tank )

3)Specific for Rodent Mouse Rat Glue Trap Board Making Machine

HG-909 fully auto mouse glue trap machine
A.Machine size and weight	Floor Space	7mx2m
A.Machine size and weight	Weight	950kg
B.Factory Facility Supply Requirements	Machine motor	30kw
	Working pressure	AC 380v ±10% 50 Hz
	pressure/pipe diameter	Min2-6Kg/㎡,pipe diameterφ8
	Environmental requirements	Clean, separate material machines, equipped with fire extinguisher facilities
C.Device control method	programmer	Plc controller and 7 inch touch screen
C.Device control method	constant temperature heating	PID control
D. mouse board size range	Width	170mm-300mm
	Glue coating size	130mm-260mm
	tolerance range	±0.5mm
E.configure	Control system	PLC:yonghong
	Control system	Touch screen: Fanyi
	Transmission ,fold	Servo control:Hui chuan
	Auto feeder	400w horizontal motor + frequency control (Yatai)
F.Other	Most machine parts use standard parts
F.Other	Need to be equipped with a air compressor more than 1.5KW

4)Specific for Rodent Mouse Rat Glue Trap Board Making Machine

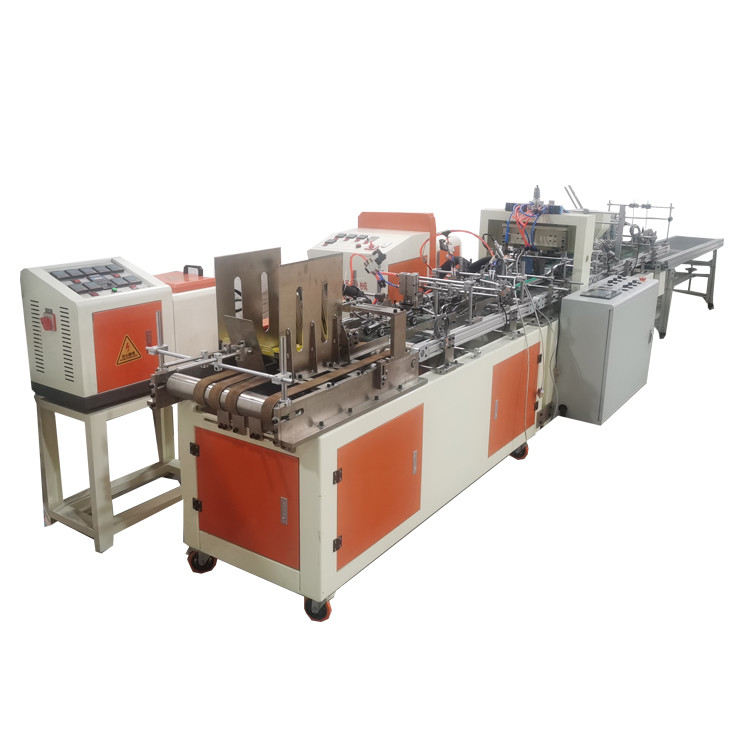

80kg Hot Melt Rat Glue Trap Making Machine Automatic Control 0

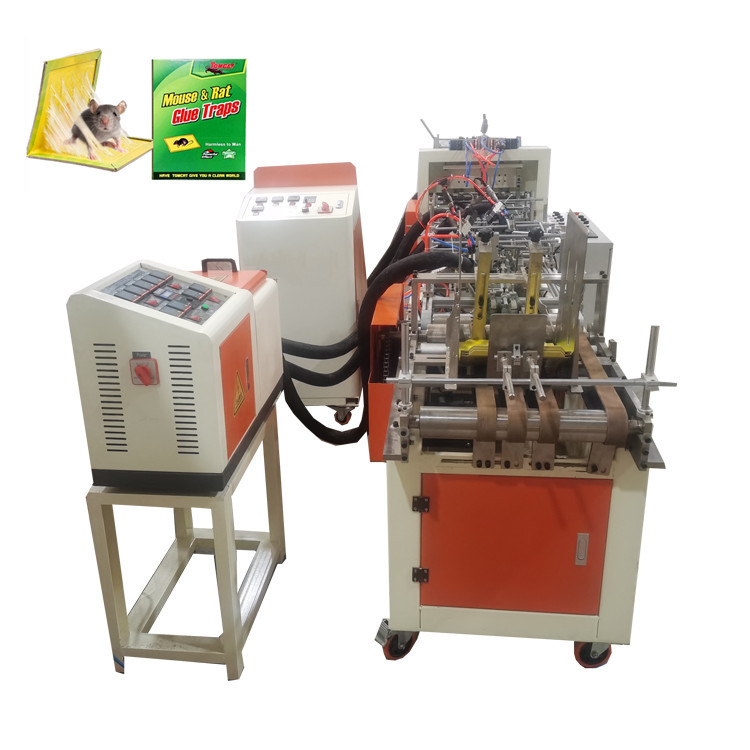

80kg Hot Melt Rat Glue Trap Making Machine Automatic Control 1
